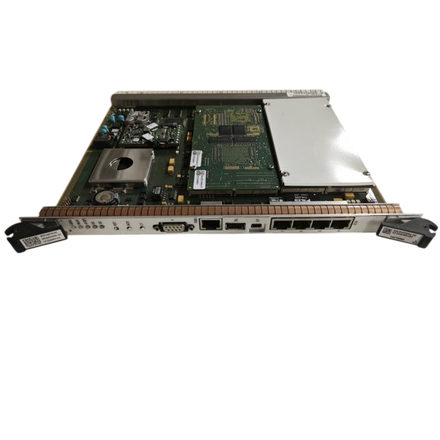

Alcatel-Lucent 3AL94248BA AB10 ESCT2000 Equipment Management Board

The Alcatel-Lucent 3AL94248BA AB10 ESCT2000 (Equipment Shelf Controller 2000) is an advanced equipment management board engineered for comprehensive shelf-level hardware management, system coordination, and intelligent infrastructure monitoring in optical transport network platforms for SDH/SONET and packet-optical architectures. This module provides sophisticated equipment management functions including hardware inventory tracking, module status monitoring, environmental sensor data aggregation, field-replaceable unit (FRU) identification with EEPROM-based data storage, and automated asset management across the transport shelf. The ESCT2000 card implements intelligent shelf management capabilities with support for hot-swappable module detection, automatic configuration loading, real-time hardware health monitoring, predictive failure analysis, and performance optimization across all installed service interface boards, cross-connect modules, control units, power distribution systems, transceiver boards, and fan units. It features high-speed backplane connectivity for inter-card communication using I²C, SMBus, PMBus, Ethernet, and proprietary management protocols to coordinate operations between system controllers, switching fabric modules, optical amplifiers, and interface cards. The module supports comprehensive equipment lifecycle management including firmware version tracking, hardware compatibility validation, software image management, mean-time-between-failure (MTBF) statistics collection, predictive maintenance alerts based on continuous monitoring of temperature, voltage, current, fan speed, optical power levels, and connector integrity. Integration with the shelf's control plane enables automated equipment provisioning, inventory reconciliation, alarm correlation, field upgrade operations, remote diagnostics for rapid fault isolation and service restoration, and configuration backup/restore functionality. The ESCT2000 features redundant controller architecture with automatic protection switching and stateful switchover capabilities to maintain carrier-grade availability exceeding 99.999%. Management interfaces include SNMP v3, TL1, NETCONF/YANG, IPMI 2.0, RESTful APIs, and proprietary element management system protocols for integration with Alcatel-Lucent's 1350 OMS, NuWave EMS, SDN controllers, and third-party network management systems. Power is supplied via redundant −48 V DC feeds with integrated monitoring, overcurrent protection, remote power cycling capabilities, and intelligent power management. Environmental specifications comply with ETSI EN 300 019 Class 3.1 and NEBS GR-63 Level 3 standards, supporting continuous operation in controlled telecommunications facilities with ambient temperatures from 0 °C to +45 °C and relative humidity up to 95% non-condensing. The ESCT2000 is validated for deployment in Alcatel-Lucent 1650SM/1660SM/1670/1696MS/1830/1850 series transport platforms and ensures interoperability with ITU-T M.3010, M.3100, M.3400, TM Forum standards, and IETF RFC 6241/6242 for telecommunications equipment management, fault reporting, and automated network orchestration.
