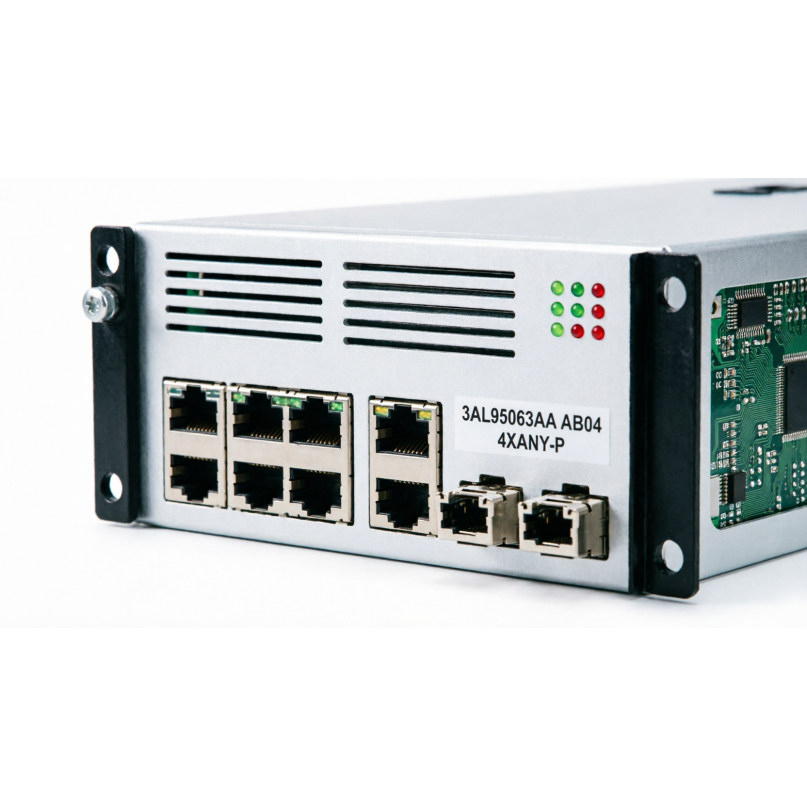

Alcatel-Lucent 3AL95063AA AB04 4XANY - P Service Interface Board

The Alcatel-Lucent 3AL95063AA AB04 4XANY - P is a versatile multi-service interface board engineered for flexible service aggregation and transport in optical transport network platforms for SDH/SONET and packet-optical architectures. This module provides four universal client interfaces capable of supporting multiple service types and protocols, enabling dynamic service provisioning and efficient resource utilization in metro access and aggregation applications. The 4XANY - P (4-port Any Service - Packet) card supports configurable interfaces including STM-1/OC-3, STM-4/OC-12, Gigabit Ethernet, Fast Ethernet, E1/T1, and E3/T3 services with software-defined port assignment and protocol adaptation optimized for multi-service delivery. The board implements comprehensive service adaptation, framing, and mapping functions per ITU-T G.707, G.7041 (GFP), G.7042 (VCAT/LCAS), and IEEE 802.3 specifications with support for virtual container mapping, Ethernet frame encapsulation, and TDM pseudowire emulation. Advanced features include automatic protection switching (APS) with sub-50ms switchover, loopback testing capabilities for service validation and fault isolation, performance monitoring of frame loss, latency, jitter, bit error rate (BER), and code violations, Quality of Service (QoS) enforcement with traffic prioritization, policing, and shaping per IEEE 802.1p/Q and MEF specifications, and comprehensive OAM capabilities including Ethernet OAM (802.3ah/802.1ag/Y.1731) and TDM OAM for service-level monitoring. Integration with the transport shelf backplane provides connectivity to cross-connect matrices for flexible traffic grooming and bandwidth management across the transport network. Management interfaces include TL1, SNMP v3, NETCONF/YANG, and proprietary element management system protocols for integration with Alcatel-Lucent's 1350 OMS, NuWave EMS, and third-party network management systems. Power is supplied via −48 V DC backplane distribution with hot-swappable design enabling field replacement without service disruption. Environmental specifications comply with ETSI EN 300 019 Class 3.1 and NEBS GR-63 Level 3 standards, supporting continuous operation in controlled telecommunications facilities with ambient temperatures from 0 °C to +45 °C and relative humidity up to 95% non-condensing. The module is validated for deployment in Alcatel-Lucent 1650SM/1660SM/1670/1696MS/1830/1850 series transport platforms and ensures compliance with ITU-T G.783, G.826, G.828, MEF, IEEE 802.3, and ANSI T1.105 standards for carrier-grade multi-service delivery and interoperability.
