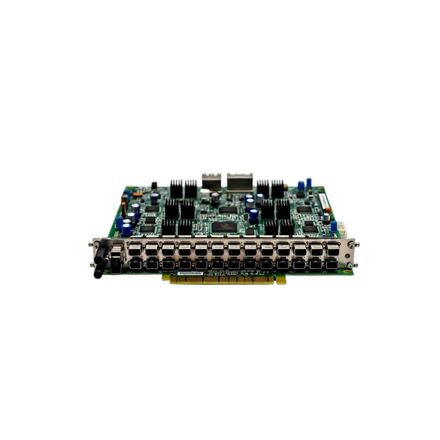

Alcatel-Lucent NTHW44AA 16P OC3/STM-1 MS3 POS ATM Line Interface Module

The Alcatel-Lucent NTHW44AA 16P OC3/STM-1 MS3 POS ATM is a high-density multi-service line interface module engineered for comprehensive optical transport of OC-3/STM-1 synchronous digital hierarchy services with integrated Packet over SONET/SDH (POS) and Asynchronous Transfer Mode (ATM) functionality in telecommunications network platforms. This module provides 16 optical interface ports for 155.52 Mbps concatenated optical channel transmission and reception, supporting multi-service applications including traditional TDM, packet data, and ATM traffic in metropolitan access, aggregation, and core network deployments. The 16P OC3/STM-1 MS3 POS ATM card implements advanced optical physical layer functionality including optical-to-electrical and electrical-to-optical conversion, clock recovery, jitter attenuation, frame synchronization, and section/line overhead processing per ITU-T G.957, G.783, and ANSI T1.105 specifications for reliable synchronous optical network transport. The board features integrated optical transceivers with distributed feedback (DFB) or Fabry-Perot (FP) laser diodes and PIN photodiode receivers supporting short reach (SR) or intermediate reach (IR) transmission distances typically ranging from 2 km to 40 km over standard single-mode fiber (G.652) or multi-mode fiber depending on specific variant and network conditions. Advanced features include ATM cell processing with support for available bit rate (ABR), unspecified bit rate (UBR), constant bit rate (CBR), and variable bit rate (VBR) service categories, POS encapsulation per RFC 1619, RFC 1662, and RFC 2615 specifications for efficient IP packet transport over SONET/SDH, multi-protocol encapsulation over ATM (MPOA), classical IP over ATM (IPOA), and comprehensive performance monitoring of optical transmit power, optical receive power, bit error rate (BER), ATM cell loss ratio (CLR), cell transfer delay (CTD), cell delay variation (CDV), POS packet statistics, code violations, eroded seconds, and unavailable seconds. The module supports integrated ATM traffic management with traffic shaping, policing, and congestion management using forward explicit congestion notification (FECN) and backward explicit congestion notification (BECN), POS quality of service (QoS) enforcement with differentiated services (DiffServ) support, automatic laser control (ALC) for stable optical output power, temperature compensation for wavelength stability, automatic power shutdown (APS) for fiber break protection, and loopback testing capabilities (local and remote) for service validation and fault isolation. Integration with the transport shelf backplane provides connectivity to cross-connect matrices, timing distribution units, system control processors, and protection switching modules for coordinated network operation and automatic protection switching (APS) with sub-50ms switchover for carrier-grade availability. Management interfaces include TL1, SNMP v3, ATM forum ILMI (Interim Local Management Interface), NETCONF/YANG, and proprietary element management system protocols for integration with Alcatel-Lucent's 1350 OMS, 5520 AMS, 5620 SAM, and third-party network management systems, providing access to optical power levels, ATM PVC configuration, POS interface parameters, performance statistics, alarm status, loopback configuration, and diagnostic information. The 16P OC3/STM-1 MS3 POS ATM implements redundant protection architectures including 1+1 optical line protection, multiplex section protection (MSP), subnetwork connection protection (SNCP), ATM VP/VC-level protection switching, and POS route redundancy with automatic revertive and non-revertive modes. Power is distributed via −48 V DC backplane with integrated voltage regulation, current monitoring, and overcurrent protection. Environmental specifications comply with ETSI EN 300 019 Class 3.1 and NEBS GR-63 Level 3 standards, supporting continuous operation in controlled telecommunications facilities with ambient temperatures from 0 °C to +45 °C and relative humidity up to 95% non-condensing. The 16P OC3/STM-1 MS3 POS ATM is validated for deployment in Alcatel-Lucent 1650SM/1660SM/1670/1696MS series optical transport platforms and related SDH/SONET systems, and ensures compliance with ITU-T G.703, G.707, G.783, G.825, G.826, G.828, G.957, Q.922, Q.933, I.432, ATM Forum specifications (UNI 4.0, PNNI 1.0, ILMI 4.0), IETF RFC 1619, RFC 1662, RFC 2615, RFC 1483/1577/2684, ANSI T1.105, Telcordia GR-253/GR-487, and ETSI EN 300 417 standards for carrier-grade OC-3/STM-1 multi-service optical line interface functionality with integrated POS and ATM capabilities for converged network transport.
