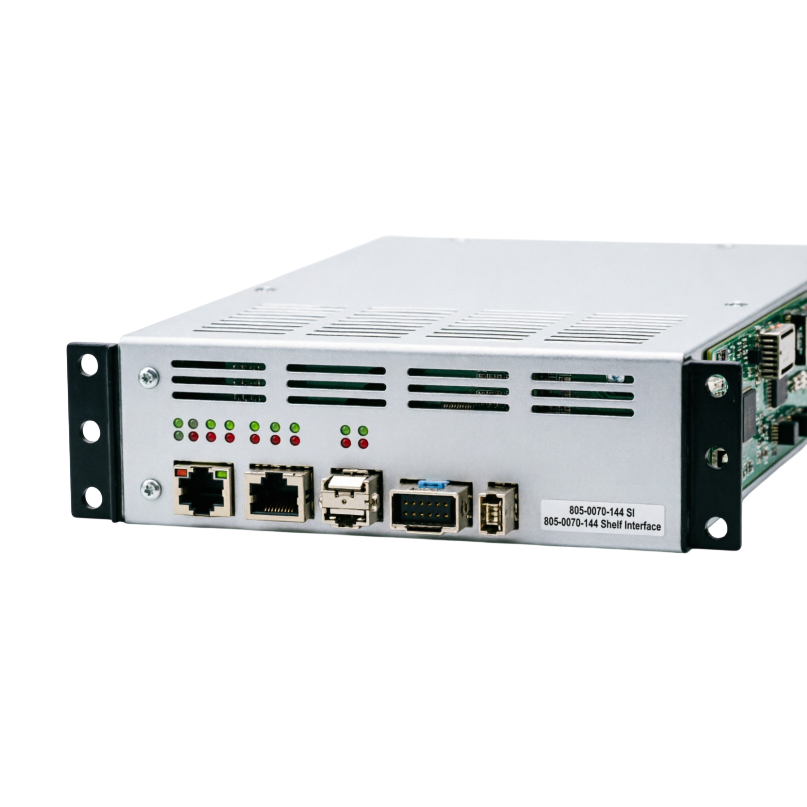

Genband 805-0070-144 SI Shelf Interface Card

The Genband 805-0070-144 SI Rev. A is a Shelf Interface Card (SI) designed for the Genband G9 multimedia gateway platform (now part of Ribbon Communications). It serves as a critical management and interfacing component within the G9 chassis, facilitating communication between the shelf controller and other line cards, power modules, and system elements. The card provides essential shelf-level management functions, including alarm collection, environmental monitoring, and control signal distribution for the subrack or shelf assembly.This module acts as the central point for shelf management in the G9 system architecture. It handles the aggregation of status signals from various boards, supports redundant configurations where applicable, and ensures proper coordination of power, cooling, and synchronization functions across the shelf. The SI card interfaces with the main control and processing units via dedicated backplane connections, enabling centralized monitoring and management of the entire shelf.

Key operational features include support for multiple alarm inputs/outputs, door and environmental sensor interfaces, power distribution monitoring, and fan status reporting. It integrates with the G9 platform's system management bus to provide real-time telemetry data to the host controller. The card is compatible with standard G9 chassis configurations and works in conjunction with other G9 modules such as Gigabit Ethernet Interface cards, voice service modules, and power supply units.

For installation and maintenance, the 805-0070-144 is designed as a hot-swappable or field-replaceable unit within the G9 subrack. It occupies a dedicated slot in the shelf and features robust connectors for reliable backplane mating. The module supports -48 VDC power feed typical for telecom environments and includes built-in protection circuitry for overvoltage and surge events. Front-panel indicators provide visual status for power, alarms, and operational readiness.

The SI card is engineered for carrier-grade reliability in high-availability telecommunications applications, including VoIP gateways, media gateways, and session border controllers. It contributes to overall system redundancy by enabling fault detection and isolation at the shelf level. Environmental specifications align with NEBS and ETSI standards, supporting operation in central office or controlled telecom environments with extended temperature and humidity ranges.

During operation, the module continuously monitors shelf parameters such as temperature, voltage levels, fan performance, and card presence. It forwards collected data to the main system controller for logging, alarming, and performance management via standard telecom management interfaces (SNMP, CLI, or proprietary protocols used in the G9 platform). Configuration and firmware updates are managed through the host system, ensuring seamless integration without manual intervention on the card itself.

The Genband 805-0070-144 SI is intended for use in deployed G9 multimedia gateway systems requiring stable shelf management and interfacing capabilities. It helps minimize downtime through proactive monitoring and supports scalable deployments by simplifying shelf-level integration of multiple service cards. Proper grounding and adherence to installation guidelines are recommended to maintain electromagnetic compatibility and long-term reliability.
